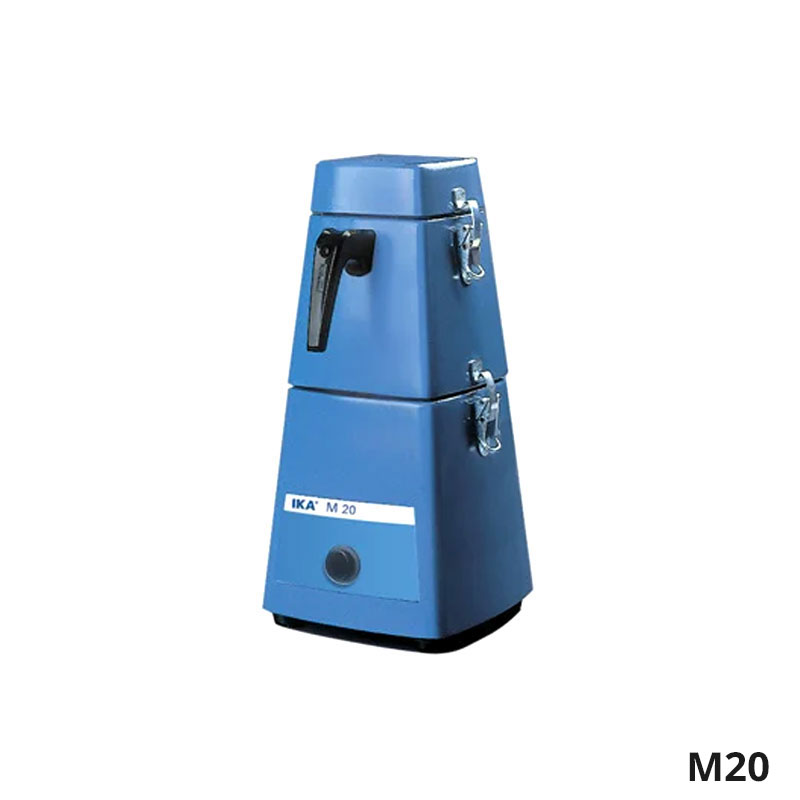

다용도 밀 M20 Universal Mill

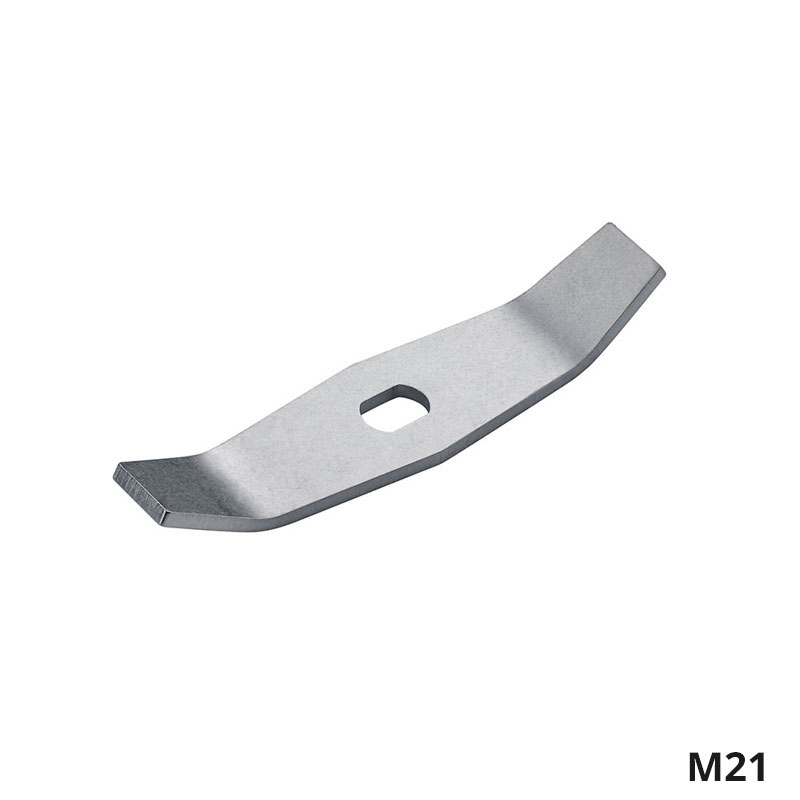

■ 구성 : M20 Mill, M21 Cutter, M20.1 Chamber
■ Batch mill suitable for dry grinding of hard and brittle substances
■ 단단하고 깨지기 쉬운 (Hard and Brittle) 소량 시료의 Dry Grinding용
■ 건조한 야채 / 곡물, 토양, 냉동 육류 및 Plastic Granulates용으로 적함함

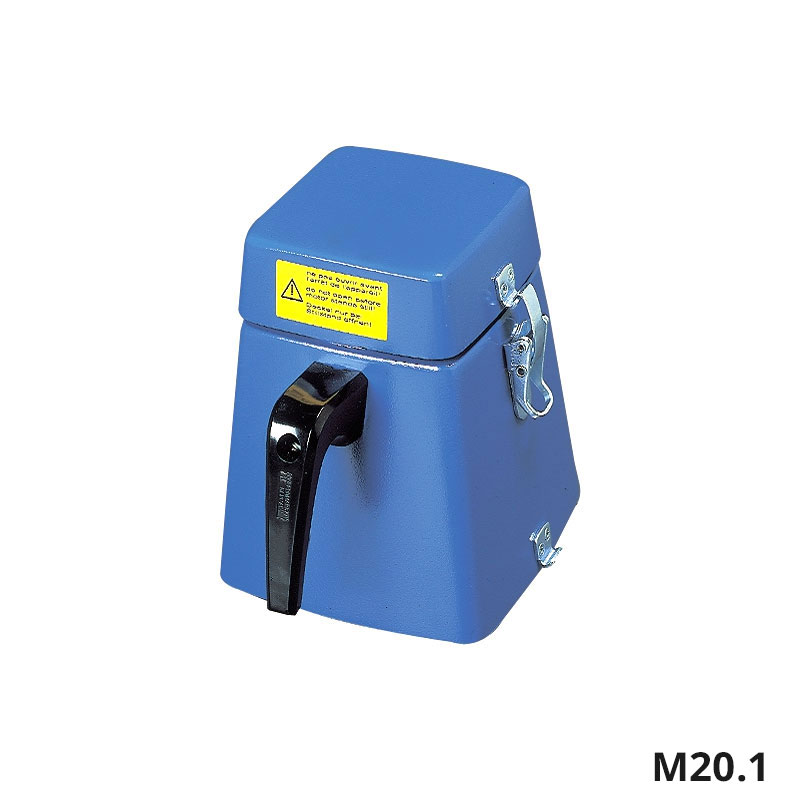

■ Spare Chamber M 20.1 (Option)을 사용하여 교대로 작업이 가능함
■ Meat, Tissue, Plant, Elastomer등을 분쇄하기에 앞서 액체 질소를 직접 넣어
동결이 가능함
■ Double Walled Grinding Chamber : 냉각수를 이용하여 온도를 낮출 수 있음
■ Protection class acc. to DIN EN 60529 (IP21)
| Cat. No | Model | Type | 용량 | R.P.M |
|---|
| M03-05-071 | 1603600 | M20 | 250 ml | 20,000 (fixed) |
| Cat. No. | M03-05-071 |
|---|
| Type | M20 |
|---|
| Motor Rating (in/output) | 440 / 225 W |
|---|
| Speed | 20,000 rpm (fixed) |
|---|
| Useful Volume | 250 ml |
|---|
| Duty Cycle On/Off | 7 min / 10 min |
|---|
| Overload Protection | Current Limitation |
|---|
| Circumferential Speed | 72 m/s |
|---|
| Max. Granularity of Task | Max. 5 - 7 mm |
|---|
| Material Grinding Chamber | Stainless Steel (AISI 304) |
|---|
| Material Cover | Stainless Steel (AISI 304) |
|---|
| Dimension / Weight | w170× d170× h350 mm / 6.6 kg |
|---|
| Power | 230V, 50/60 Hz |
|---|
