수질 분석기
pH 50+ DHS (pH,ORP/mV,Temp)
pH - mV - Temp
pH 50+ 수질측정기는 DHS(디지털 고품질 센서)라는 최신 pH Sensor를 적용하였으며 칩이 내장되어 있어 파라미터, 최근 Calibration 정보, Electrode의 생산 모델 등을 저장할 수 있습니다.
DHS pH Sensor를 수질측정기에 연결하면 센서 안에 이미 저장되어있는 데이터가 자동으로 수질측정기로 전송 되고 디스플레이창에 DHS Sensor 모델, 생산로트, 최근 Calibration 정보와 경사도 등이 순차적으로 나타납니다.


Feature
- 인체공학적인 디자인

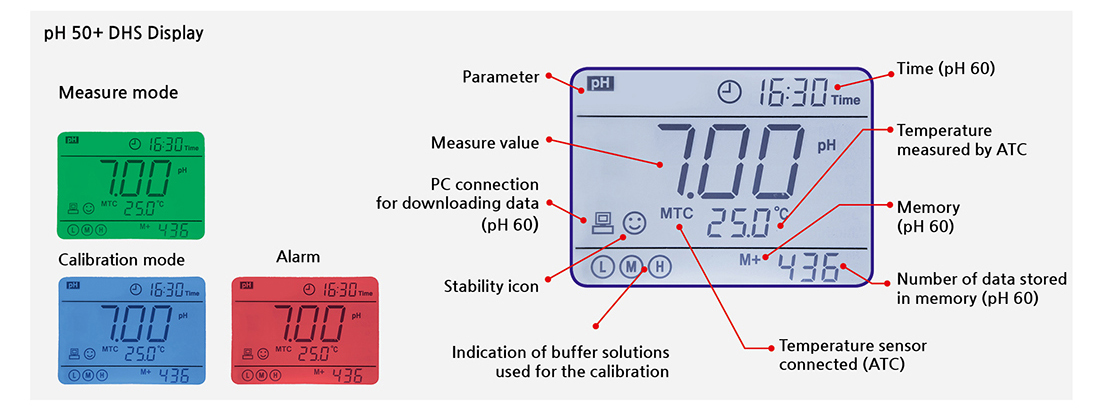

- 모든 측정 정보, 교정 버퍼, 측정 안정성 및 전극의 상태를 보여주는 대형 Backlight Display
- 측정 중 발생 되는 오류 및 매개 변수의 지속적인 모니터링 가능
- 4개의 키로 모든 기능 제어 가능
- 5VDC / 220VAC 전원 어댑터 제공
| Code | pH 50+ DHS |
|---|
| 50001002 | pH 50+ DHS complete kit includes pH electrode 201T with temperature sensor integrated, and BNC, colored buffer solutions pH 7 and pH 4 , electrode holder and 5V/220V AC power supply. |
|---|

| 제품명 | 수질 분석기 pH 50+ DHS (pH,ORP/mV,Temp) |
|---|
| Model | pH 50+ DHS |
|---|
| pH Measuring Range | 0.00…14.00 pH |
|---|
| Resolution | 0.1/0.01 pH |
|---|
| Calibration Points | 1, 2 or 3 |
|---|
| Buffers Recognized | USA: 1.68 / 4.01 / 7.00 / 10.01 pH, NIST: 1.68 / 4.01 / 6.86 / 9.18 pH, 2 points defined by the user |
|---|
| Indication of Calibration Data | Yes (slope) |
|---|
| GLP | - |
|---|
| Criteria of Measurement Stability | Yes |
|---|
| Calibration Timer | - |
|---|
| Indication of Calibration Points | Yes |
|---|
| mV Measuring Range | ± 1,000 mV |
|---|
| Resolution | 1 mV |
|---|
| Temperature Measuring Range | 0…100.0 °C |
|---|
| Sistem: GLP | - |
|---|
| Memory | - |
|---|
| Display | Baclight LCD |
|---|
| Input | BNC and RCA / CINCH (CAT) |
|---|
| Power Supply | 5 V DC / 220 V |
|---|
| IP Protection | IP 54 |
|---|
| Dimensions / Weight Instrument | 160x185x70(A) mm / 550 g |
|---|
